Push2Connect™ Coupler
Push2Connect™ Coupler
Do Not Unscrew!
Push-On-Only!
Loosening collars prior to installing can cause improper installation, create air loss, or coupler failure.
Air Tight — Water Tight
Tested to GREATER THAN 1500# Pull Out
GREATER THAN 450 (psi) air pass-through

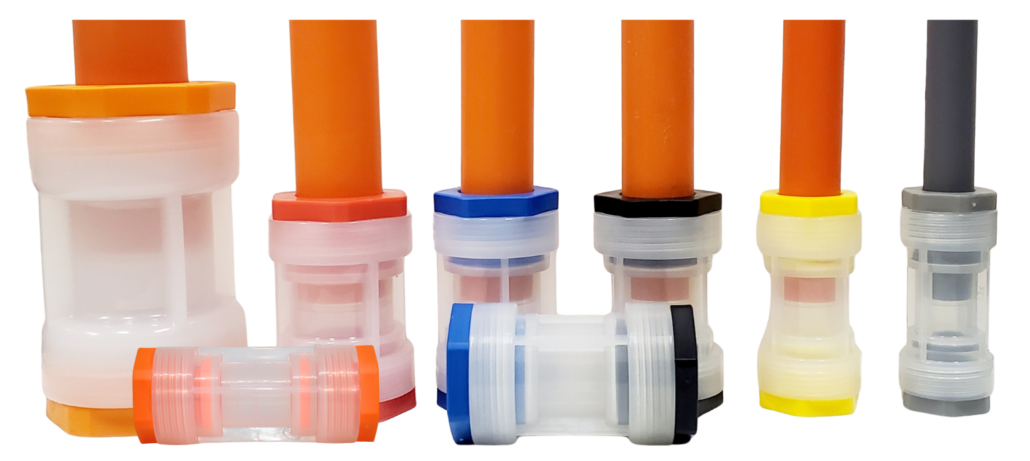

| Couplers for the Following Sizes | Duct OD | Color | Box Qty | Part Number | |
|---|---|---|---|---|---|

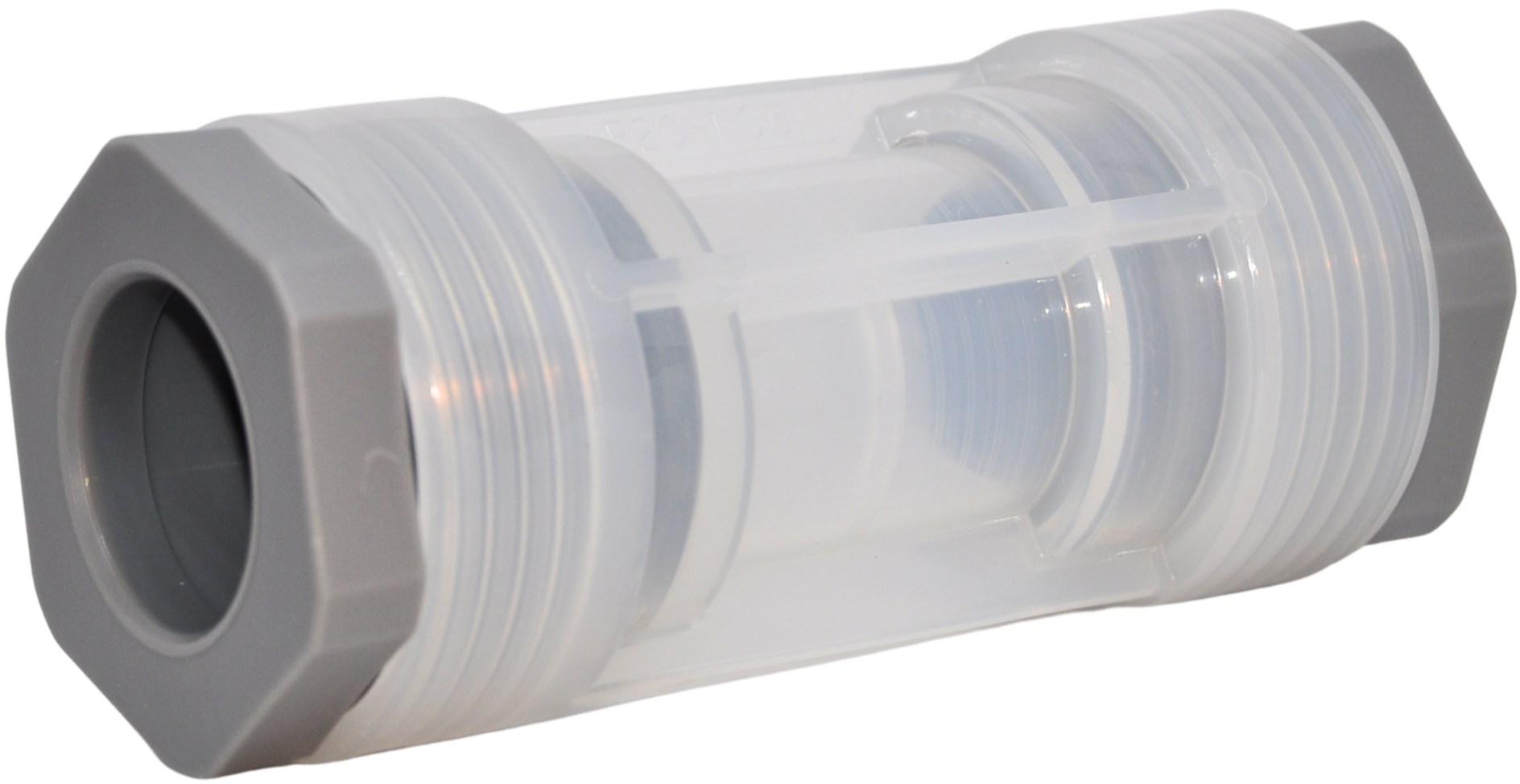

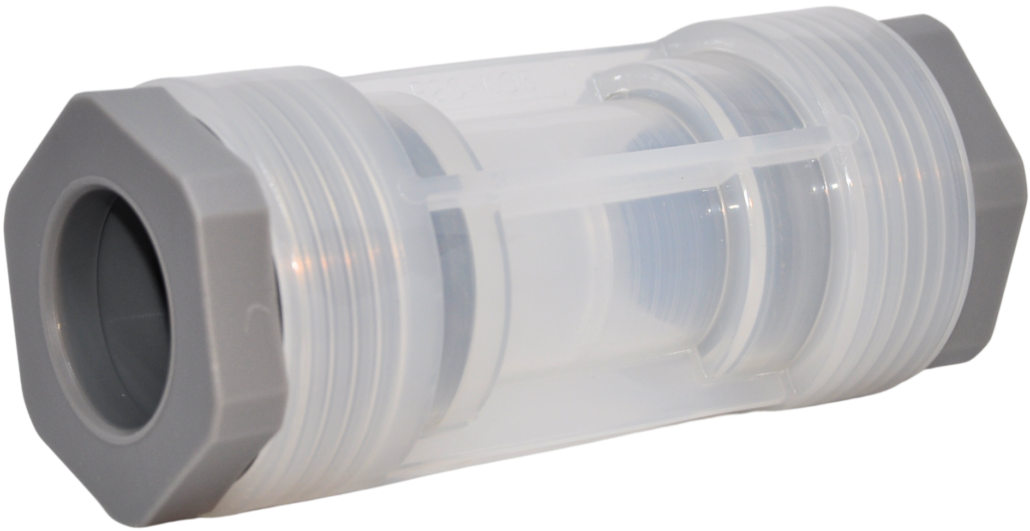

| 3/4" Smoothwall HDPE | 1.05" | Gray | 48 | P2C-1.05 | |
| 3/4" Smoothwall HDPE | 1.05" | Gray | 150 | P2C-1.05 | |

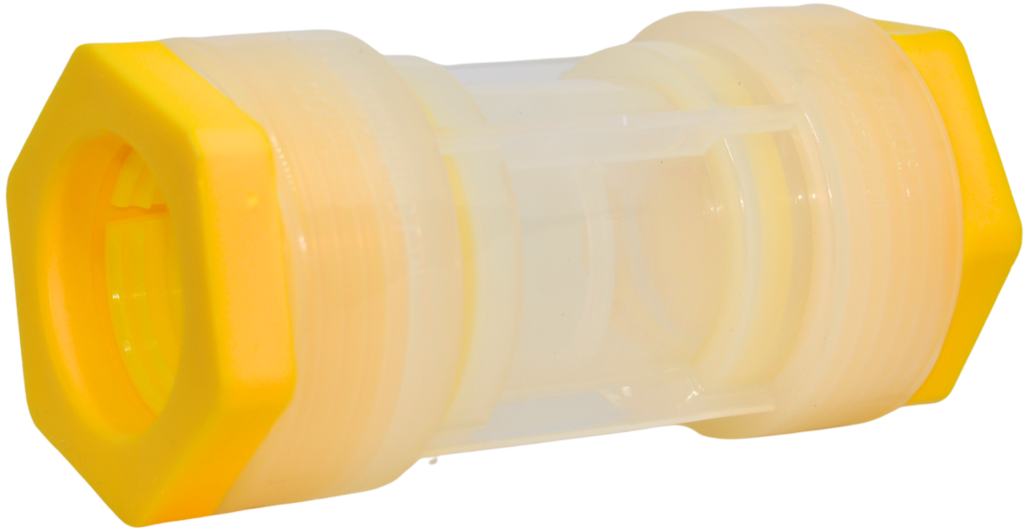

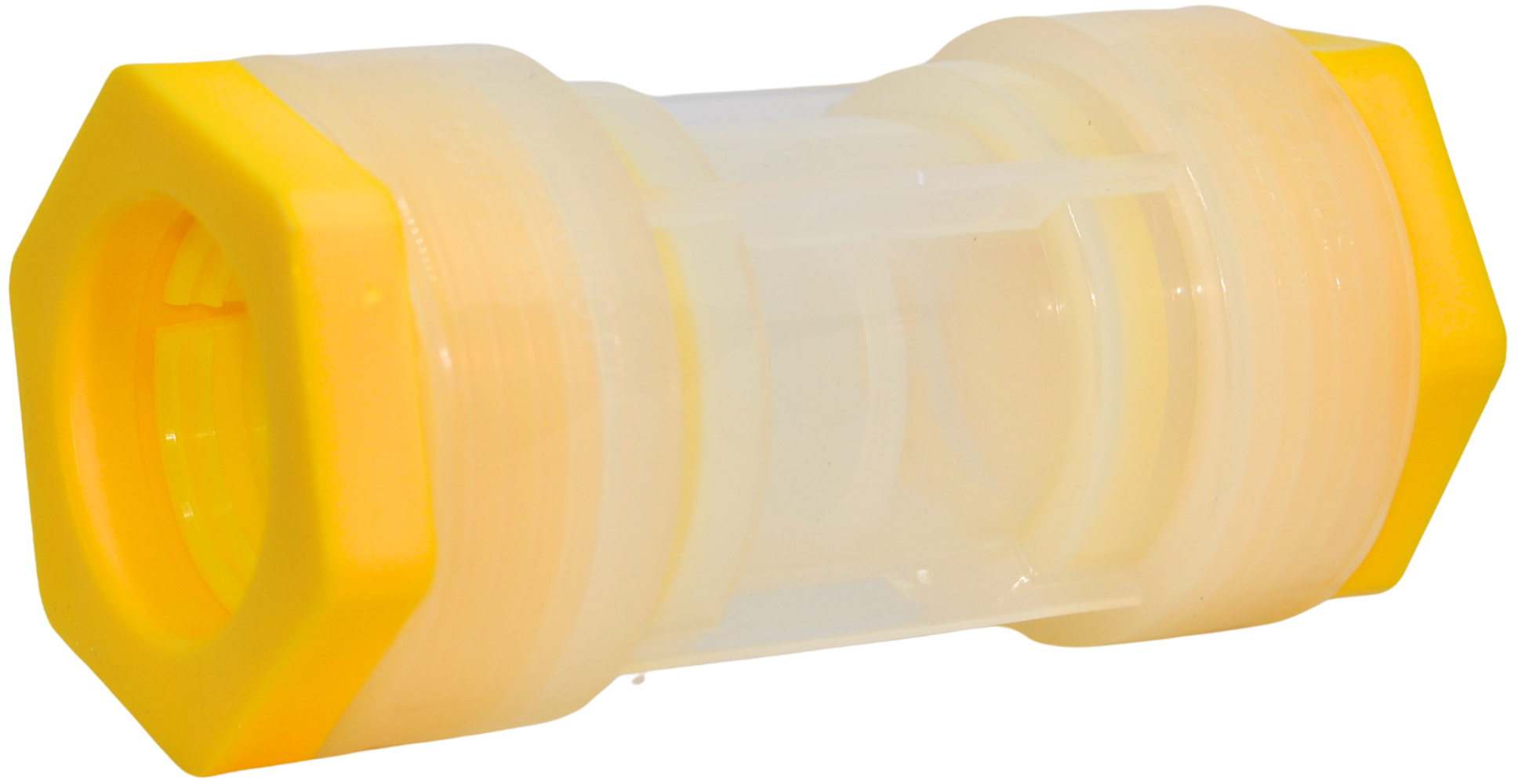

| 1" Smoothwall HDPE | 1.315" | Yellow | 85 | P2C-1.315 | |

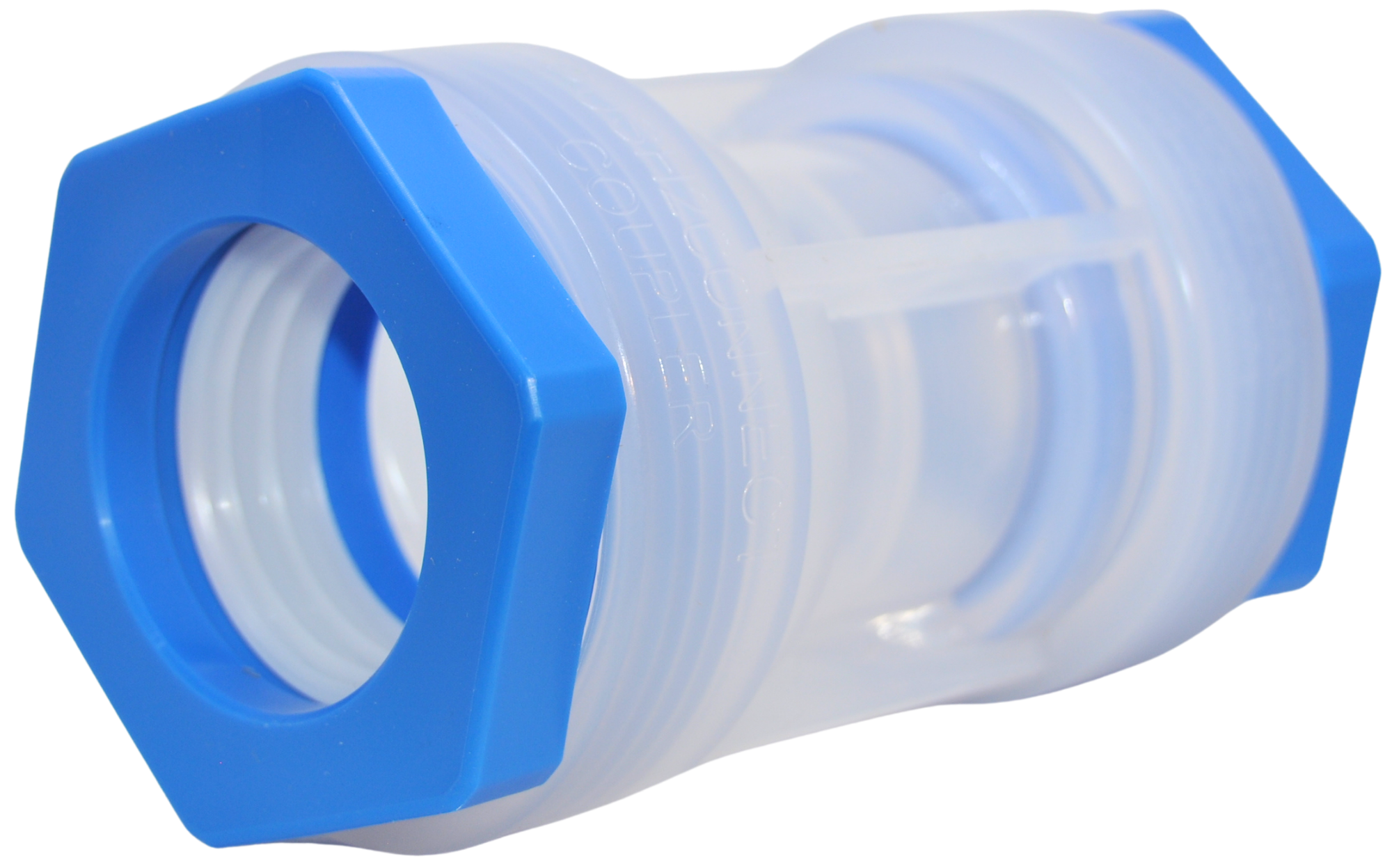

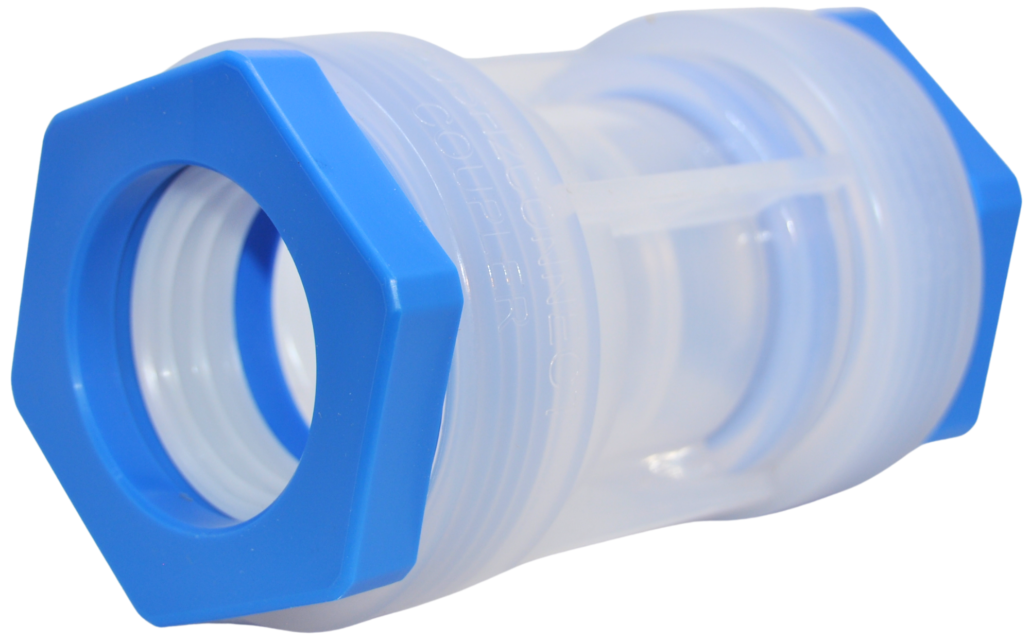

| 1.25" Smoothwall HDPE | 1.66” | Blue | 100 | P2C-1.66 | |

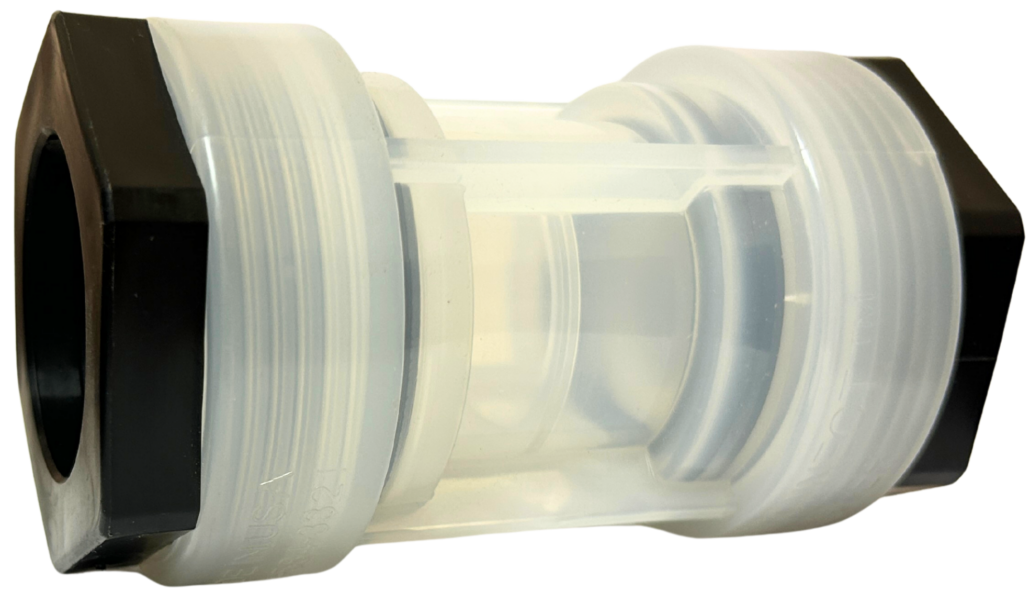

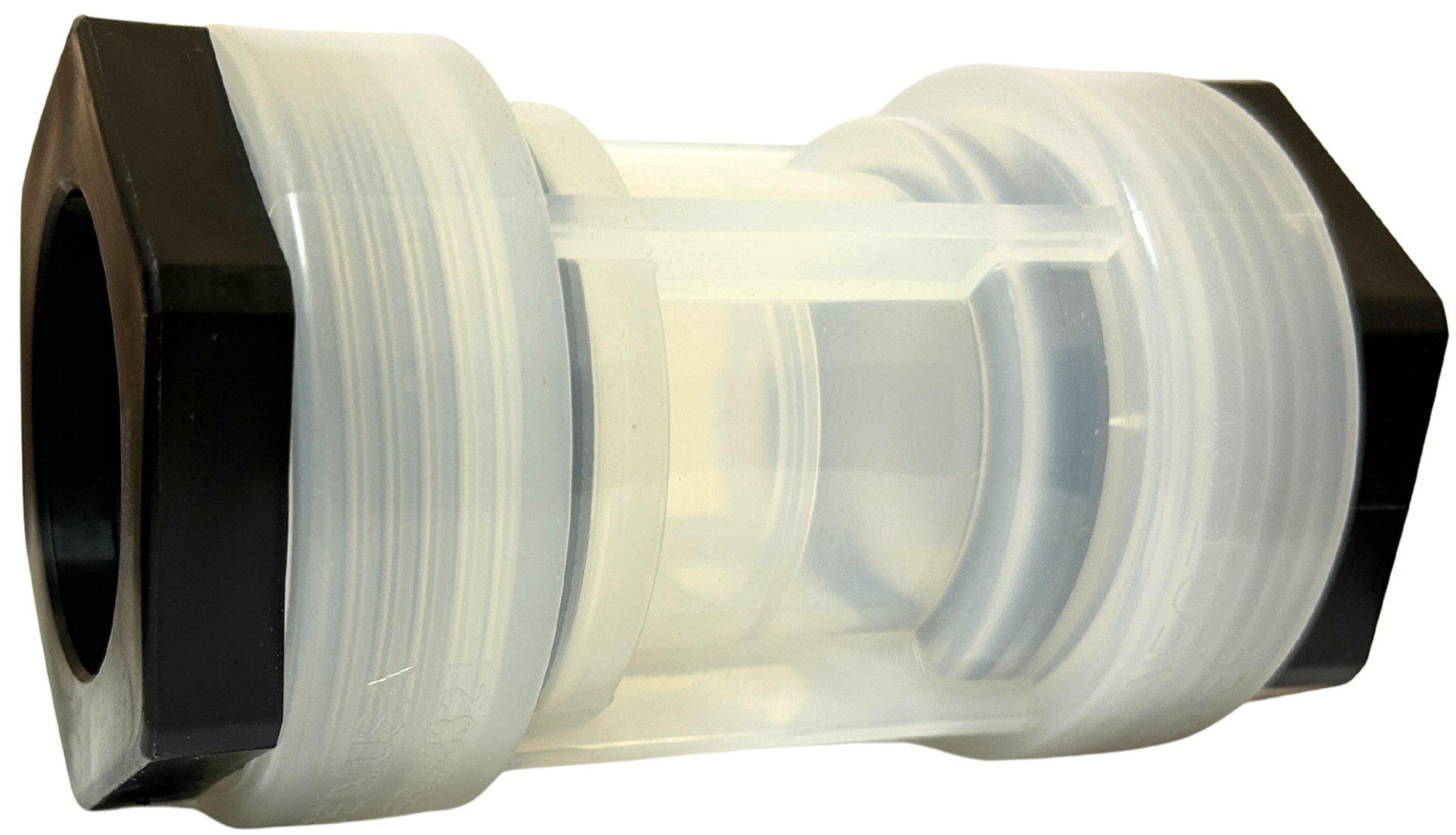

| 1.25" Smoothwall HDPE True Sized | 1.58” | Black | 100 | P2C-1.58 | |

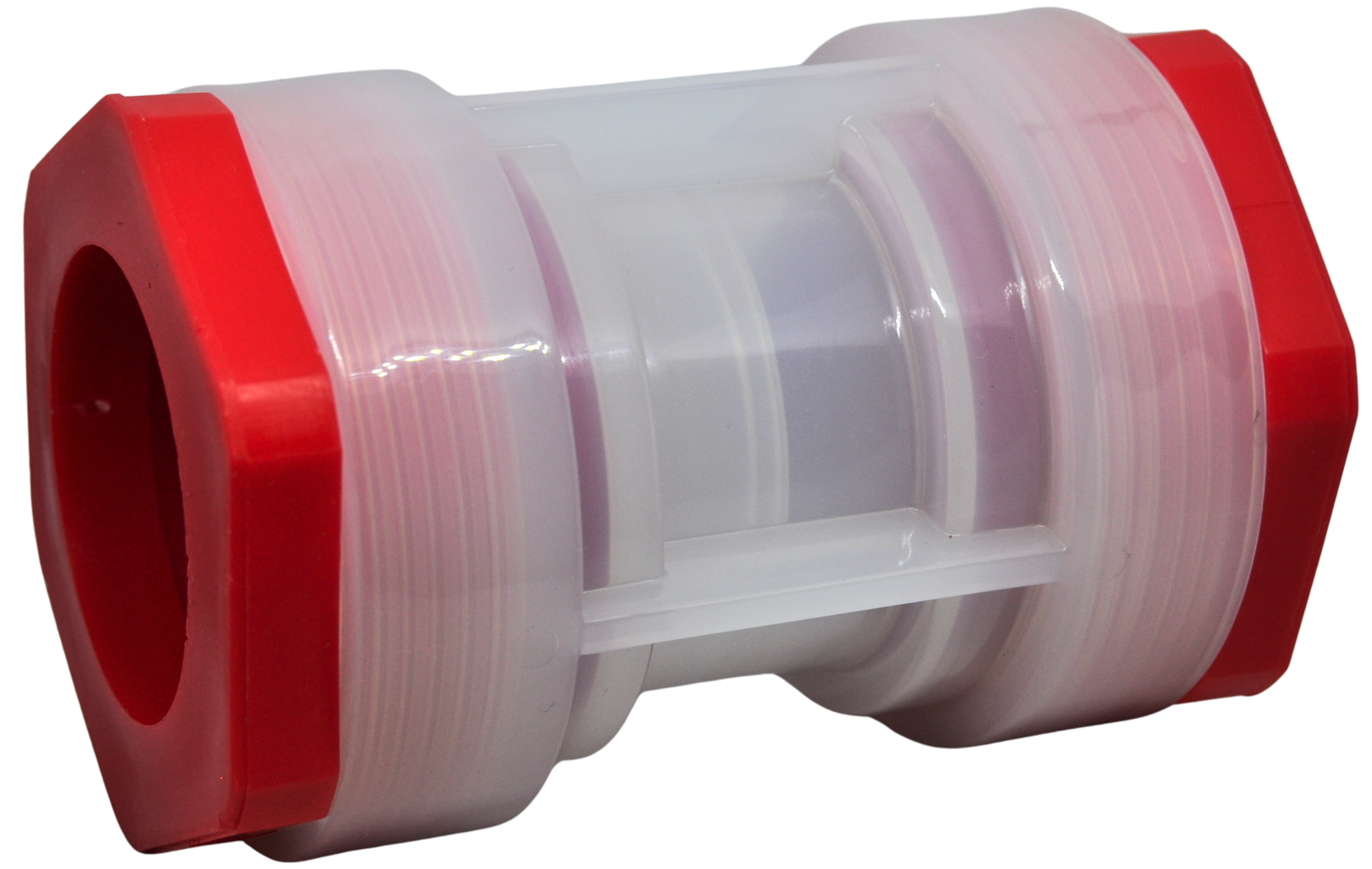

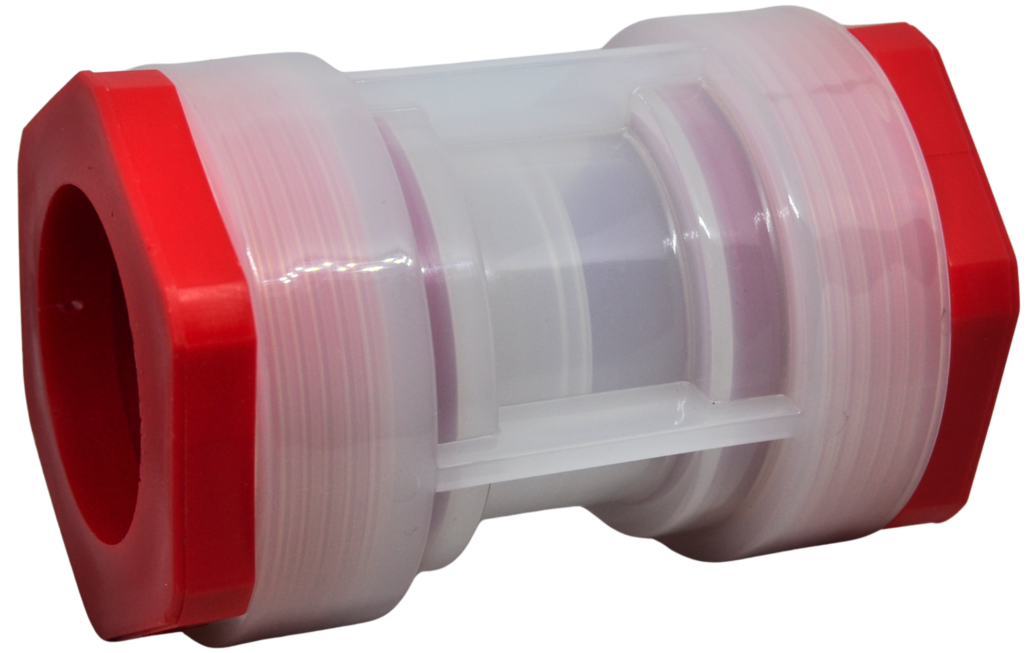

| 1.50” Smoothwall HDPE | 1.90" | Red | 78 | P2C-1.90 | |

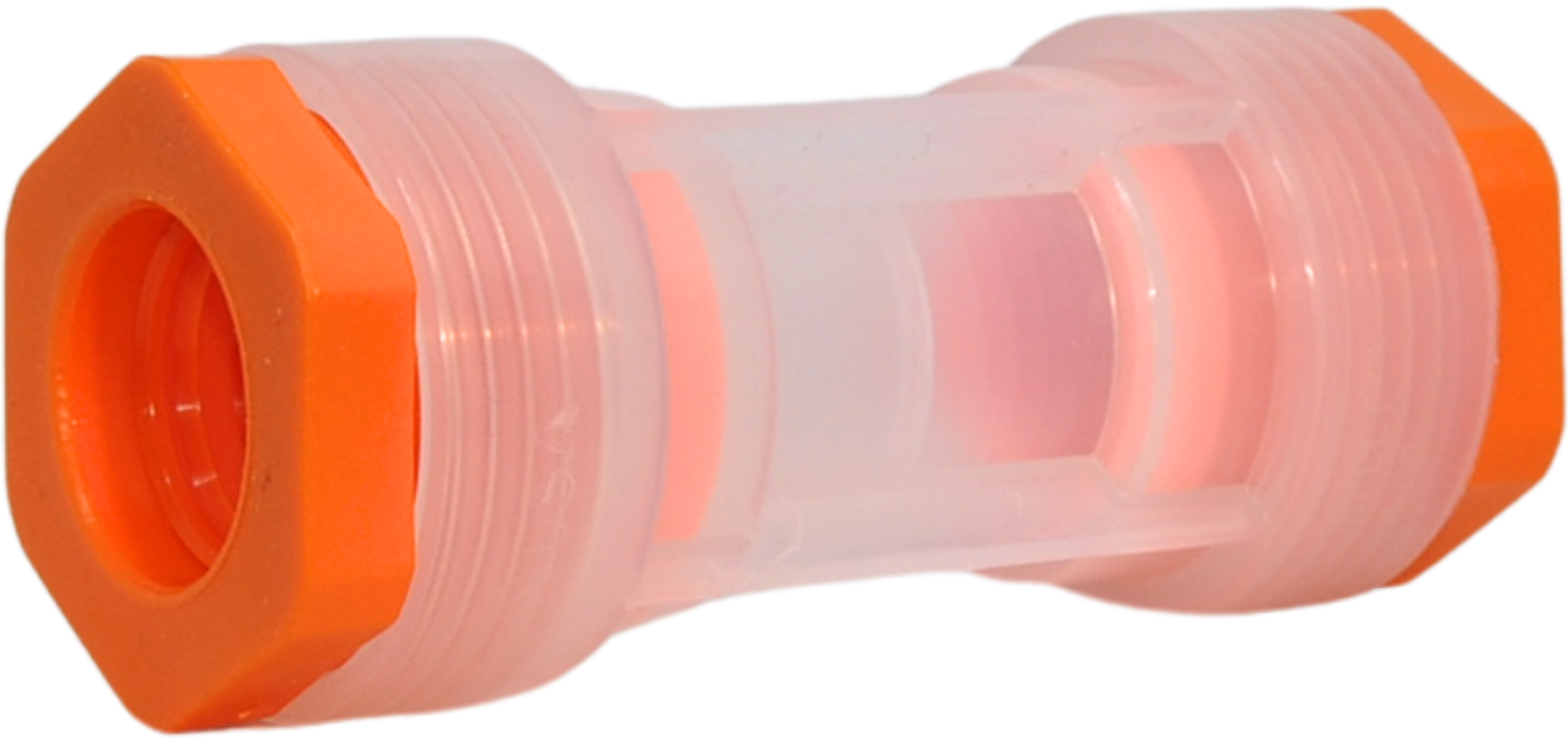

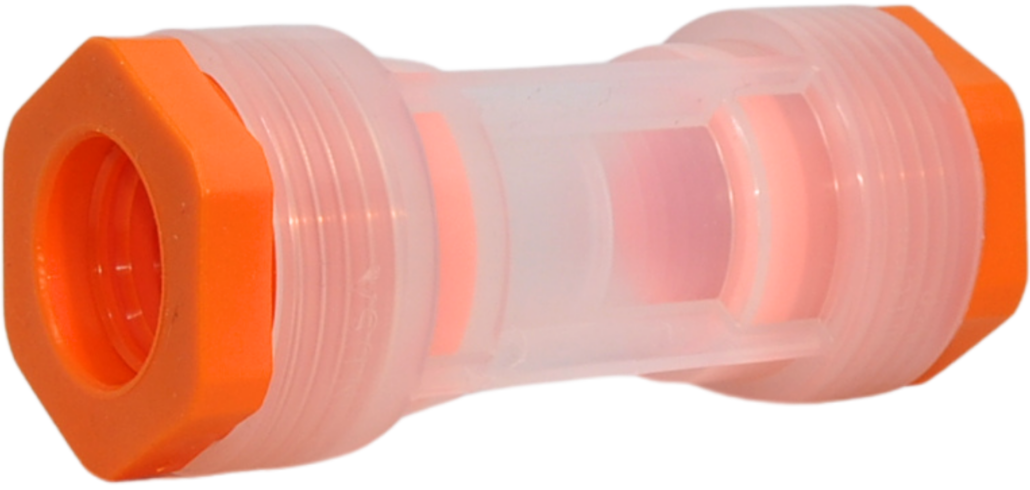

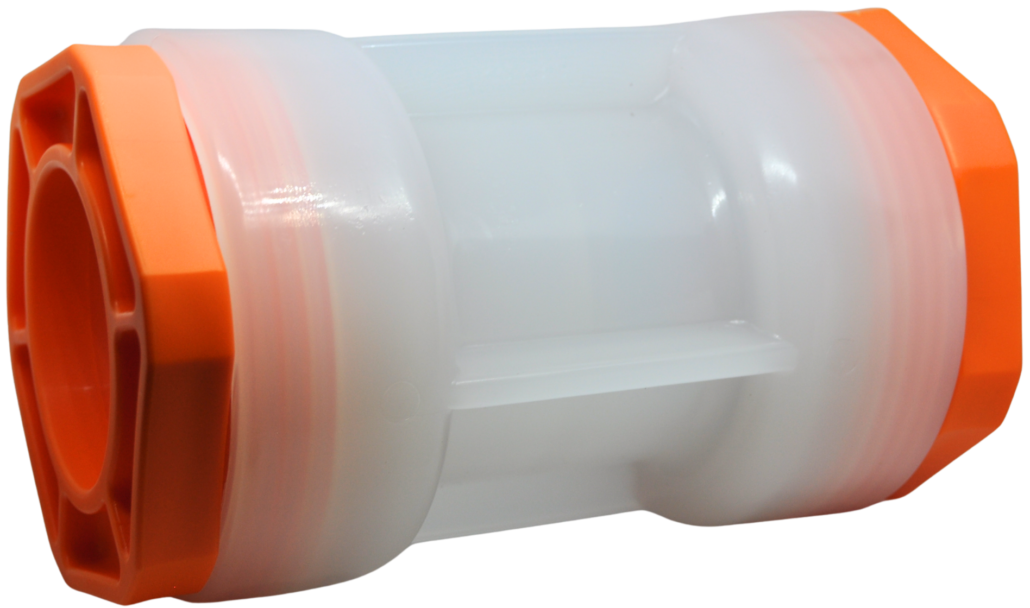

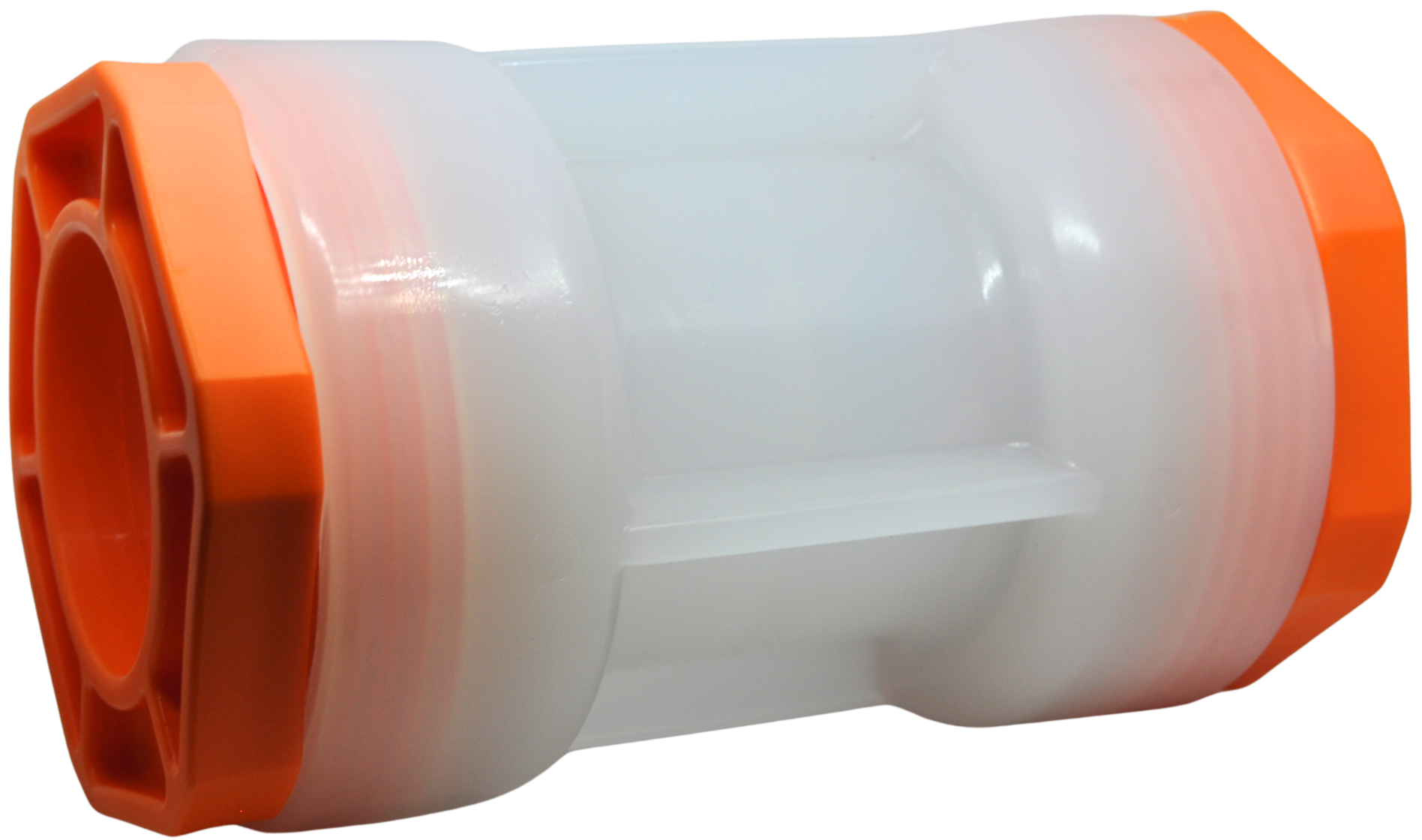

| 2” Smoothwall HDPE | 2.375” | Orange | 24 | P2C-2.375 | |

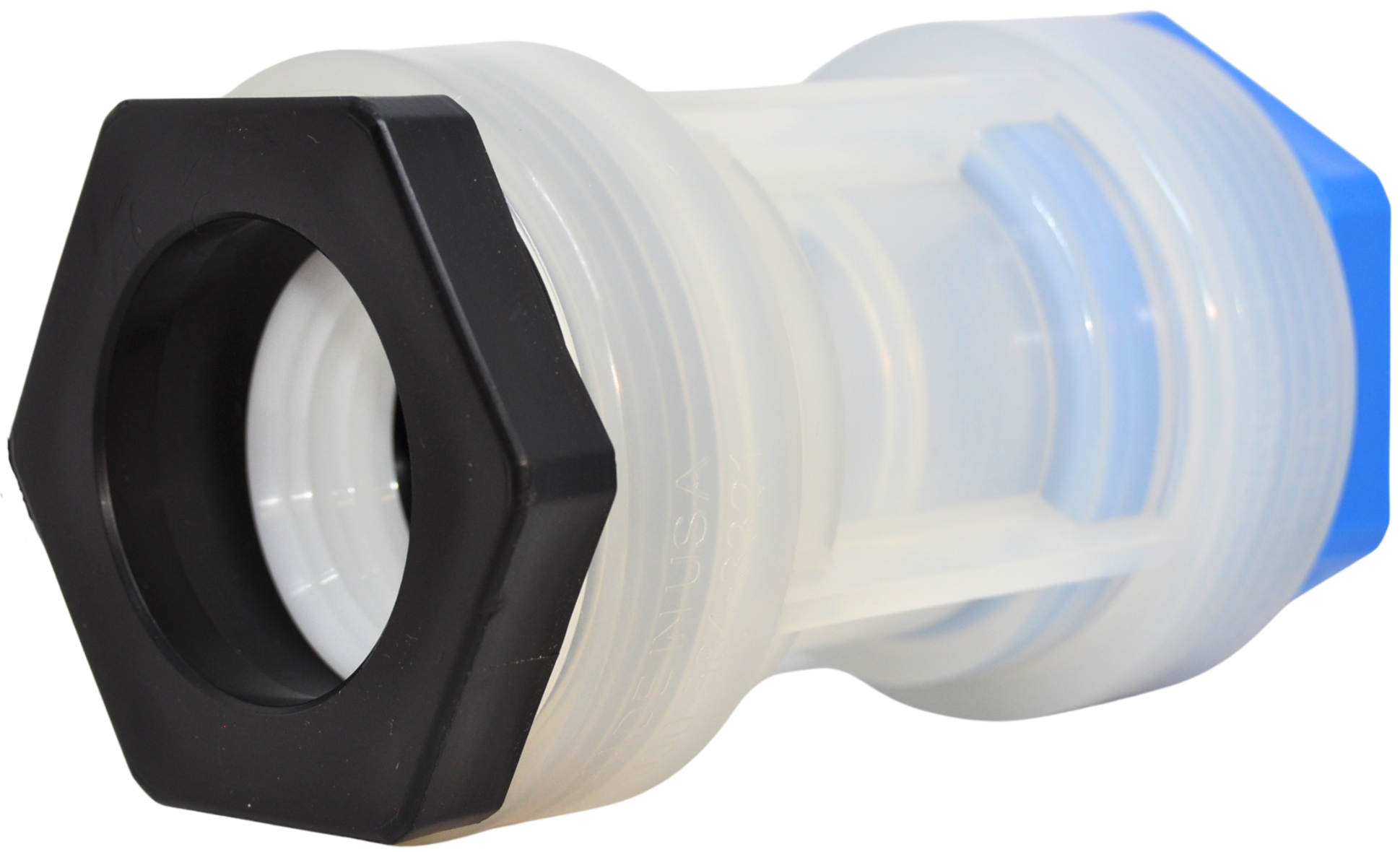

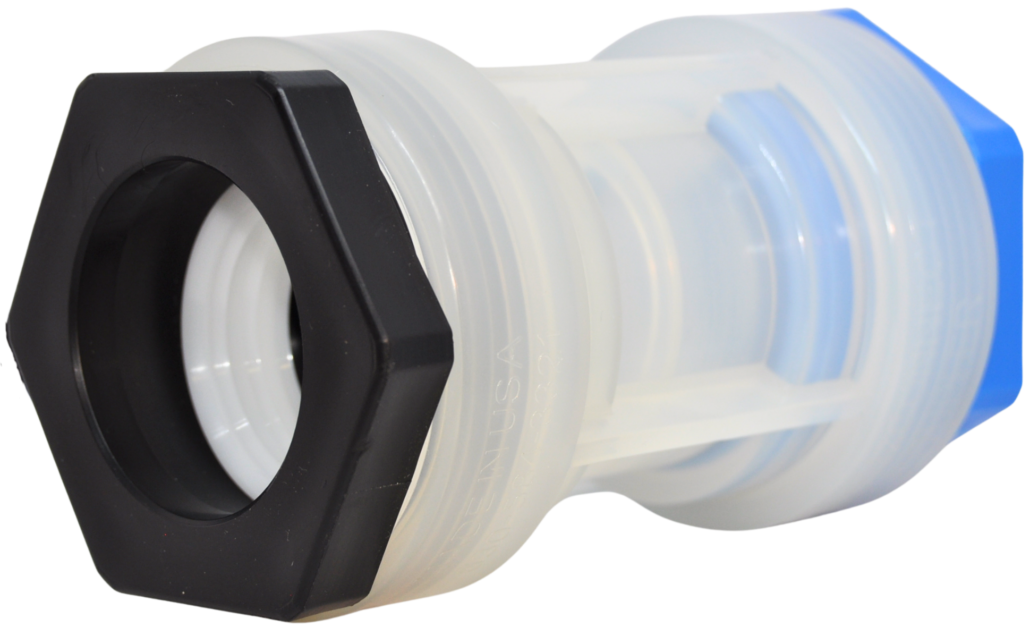

| Transition Coupler 1.25” to 1.25” | 1.58” to 1.66” | Black AND Blue | 100 | P2C-1.66-1.58trans |
Designed for underground use only
Not UV protected
EVERY PIECE IS MADE IN AMERICA
EVERY PIECE IS
MADE IN AMERICA
